IDC30E-1000W-V12_S
- TypeDC-lader
- Dimensions500 x 800 x 242 mm
- Weight53 kg
- IP ratingIP65
- Warranty3 jaar (Sungrow standaard)
Overview

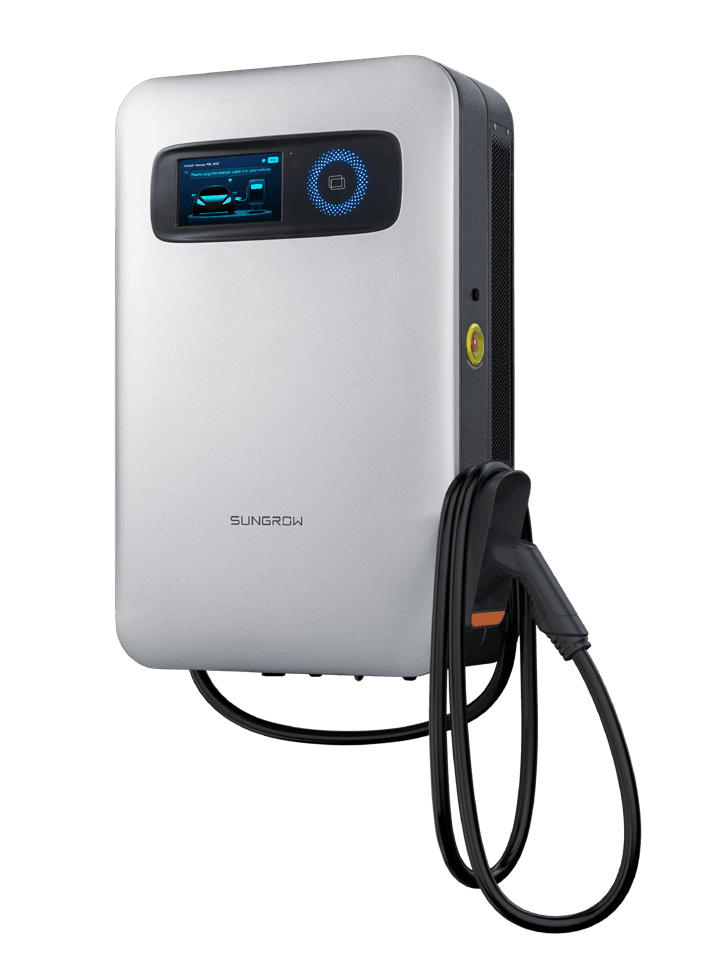

The Sungrow IDC30E is an isolated, air-cooled 30 kW DC fast charger with a 5 m CCS2 cable for one vehicle, 200 to 1000 V DC and up to 80 A. Connection to 3/N/PE 400 V with 46 A rated and 52 A maximum input current, power factor at least 0.99 and a maximum efficiency of 96.5 %.
Read the full description
Operation via a 7 inch colour touch screen, start with RFID card, plug and play or auto-charge, management and firmware updates via iEnergyCharge. Communication via 4G, Ethernet and WLAN with OCPP 1.6J (ready for OCPP 2.0.1); integrated emergency stop and DC energy metering. Dynamic load management, EMC class B and a noise level below 50 dB(A) make it suitable for businesses and residential areas.
Housing 500 x 800 x 242 mm, 53 kg, IP65 and C5 corrosion protection, IK10, -35 to 55 °C; wall mounting, optionally on a stand column or trolley. Warranty 3 years (Sungrow standard).
Specifications
- 53 kgWeight
General
- Category
- Accessories
- Product code
- 03-184
- Manufacturer code
- ACH00074
- Type
- DC-lader
- Model
- IDC30E
- Segment
- Commercieel
Mechanical
- Dimensions
- 500 x 800 x 242 mm
- Weight
- 53 kg
- IP rating
- IP65
Warranty
- Warranty
- 3 jaar (Sungrow standaard)
Other
- Connector
- CCS2, 5 m
- DC-stroom
- 80 A
- DC-spanning
- 200-1000 Vdc
- DC-vermogen
- 30 kW
- Ingangsstroom
- 46 A nominaal, 52 A max. (3-fase 400 V)
