DTS-Wifi-G1
- TypeWi-Fi-stick hybride omvormer
- Dimensions108 x 57 x 36 mm
- Weight60 g
- IP ratingIP65
- Warranty2 jaar (EU)
Overview

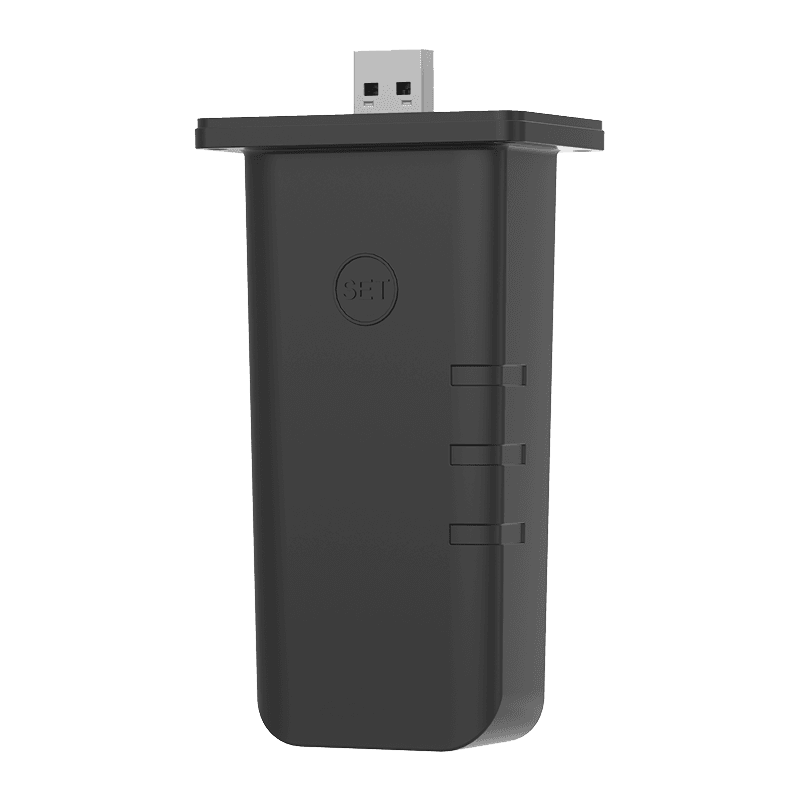

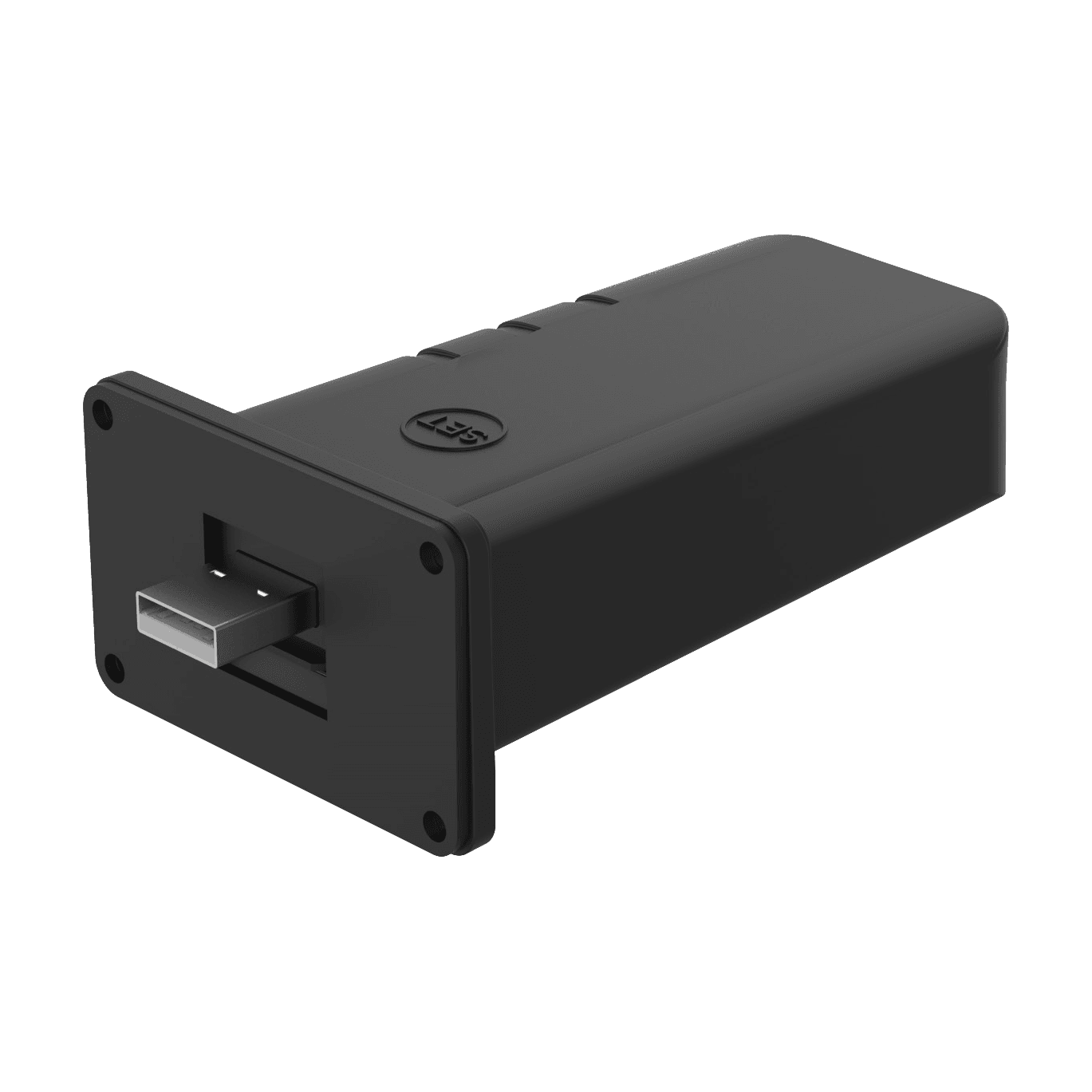

The Hoymiles DTS-Wi-Fi-G1 is the Data Transfer Stick for Hoymiles energy storage systems: it links hybrid and AC-coupled inverters such as the HYS, HAS, HYT and HAT series to the S-Miles Cloud platform over Wi-Fi for real-time data, alarms and remote maintenance. The stick plugs into the inverter's USB port and is secured with a screw.
Read the full description
Technical data according to Hoymiles: up to 10 inverters, 5-minute sample rate, Wi-Fi 802.11 b/g/n at 2.412 to 2.484 GHz, configuration via app or web page, 5 V DC supply from the inverter, consumption up to 5 W. Dimensions 108 × 57 × 36 mm, 60 g, IP65, -25 to +65 °C, up to 4000 m altitude, CE and RCM.
According to the HYS/HAS-LV-EUG1 manual a DTS is included in the inverter's accessory box; so check whether a separate stick is needed. Microinverters use a Hoymiles DTU instead. Hoymiles grants 2 years of warranty on the DTS in Europe.
Specifications
- 60 gWeight
General
- Category
- Accessories
- Product code
- 42-167
- Manufacturer code
- CD041114
- Type
- Wi-Fi-stick hybride omvormer
- Model
- DTS-Wi-Fi-G1
- Segment
- Residentieel
Electrical
- Communication
- Wi-Fi 2,4 GHz, USB
Mechanical
- Dimensions
- 108 x 57 x 36 mm
- Weight
- 60 g
- IP rating
- IP65
Warranty
- Warranty
- 2 jaar (EU)
Other
- Meetinterval
- 5 min
- Max. omvormers
- 10
Questions
The short ones are here. For anything else, ask below.
The Hoymiles DTS-Wi-Fi-G1 is the Data Transfer Stick for Hoymiles energy storage systems: it links hybrid and AC-coupled inverters such as the HYS, HAS, HYT and HAT series to the S-Miles Cloud platform over Wi-Fi for real-time data, alarms and remote maintenance. The stick plugs into the inverter's USB port and is secured with a screw.
