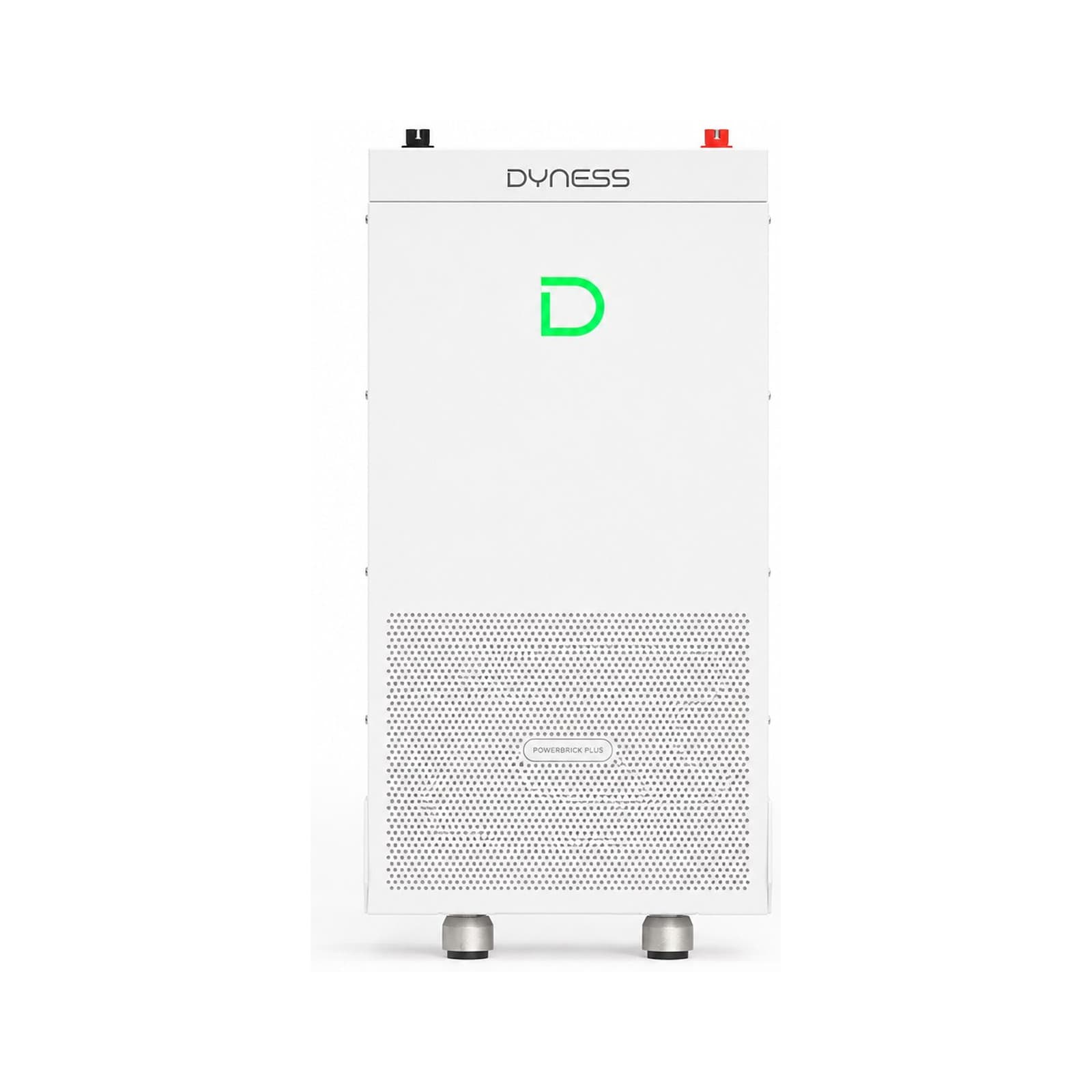

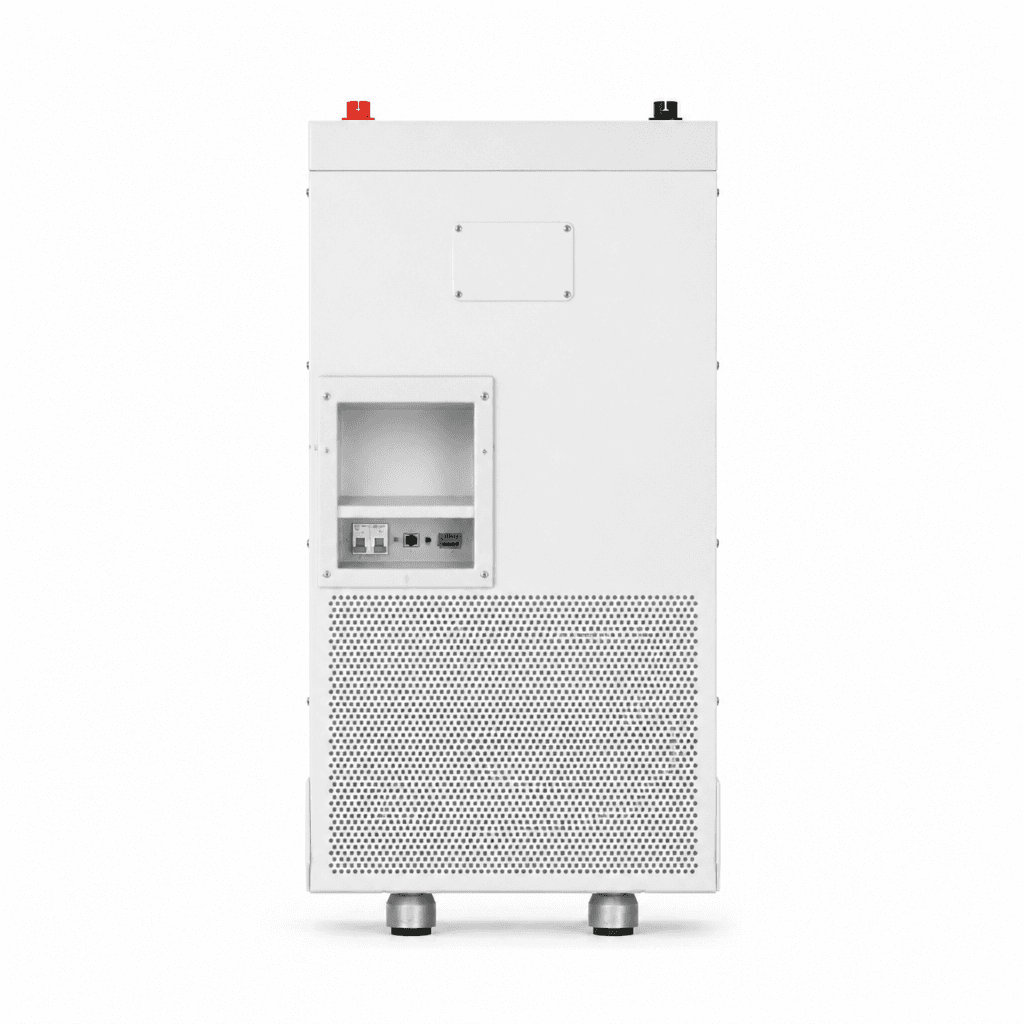

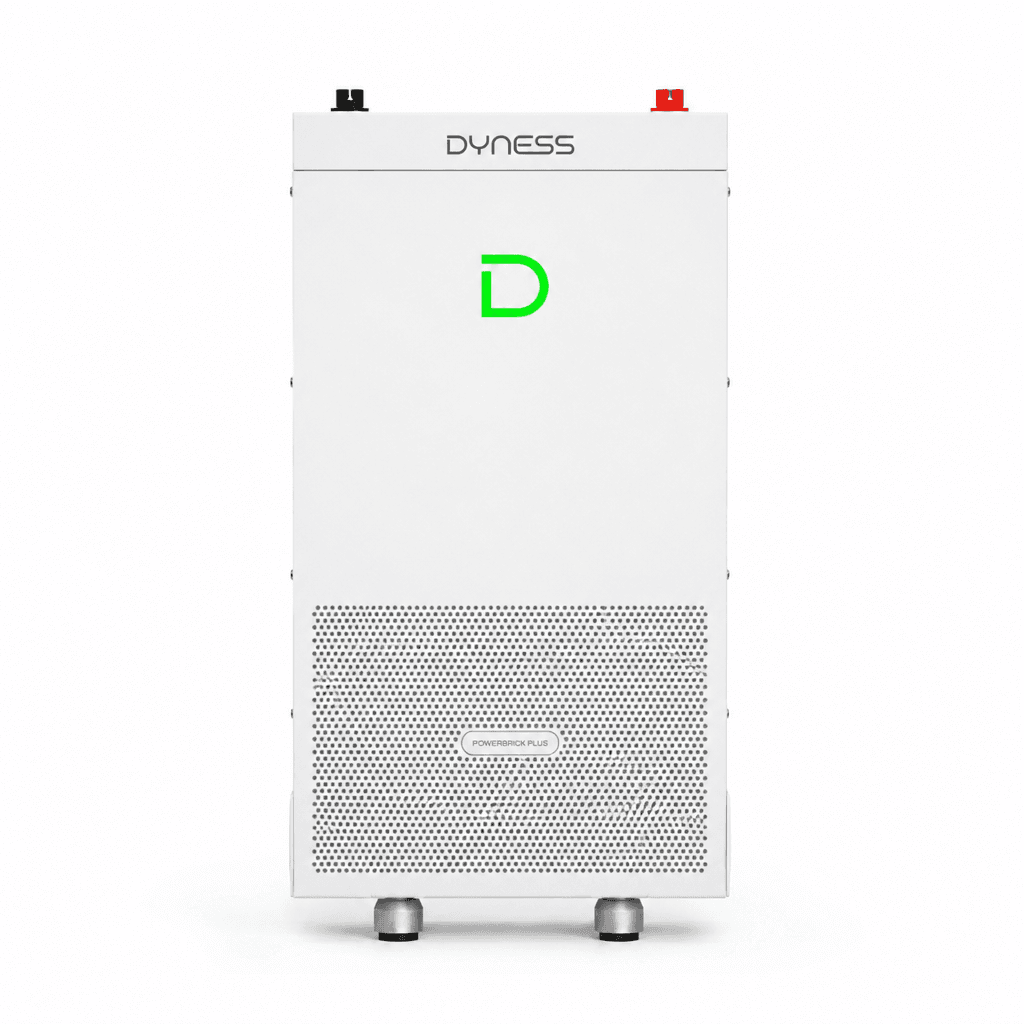

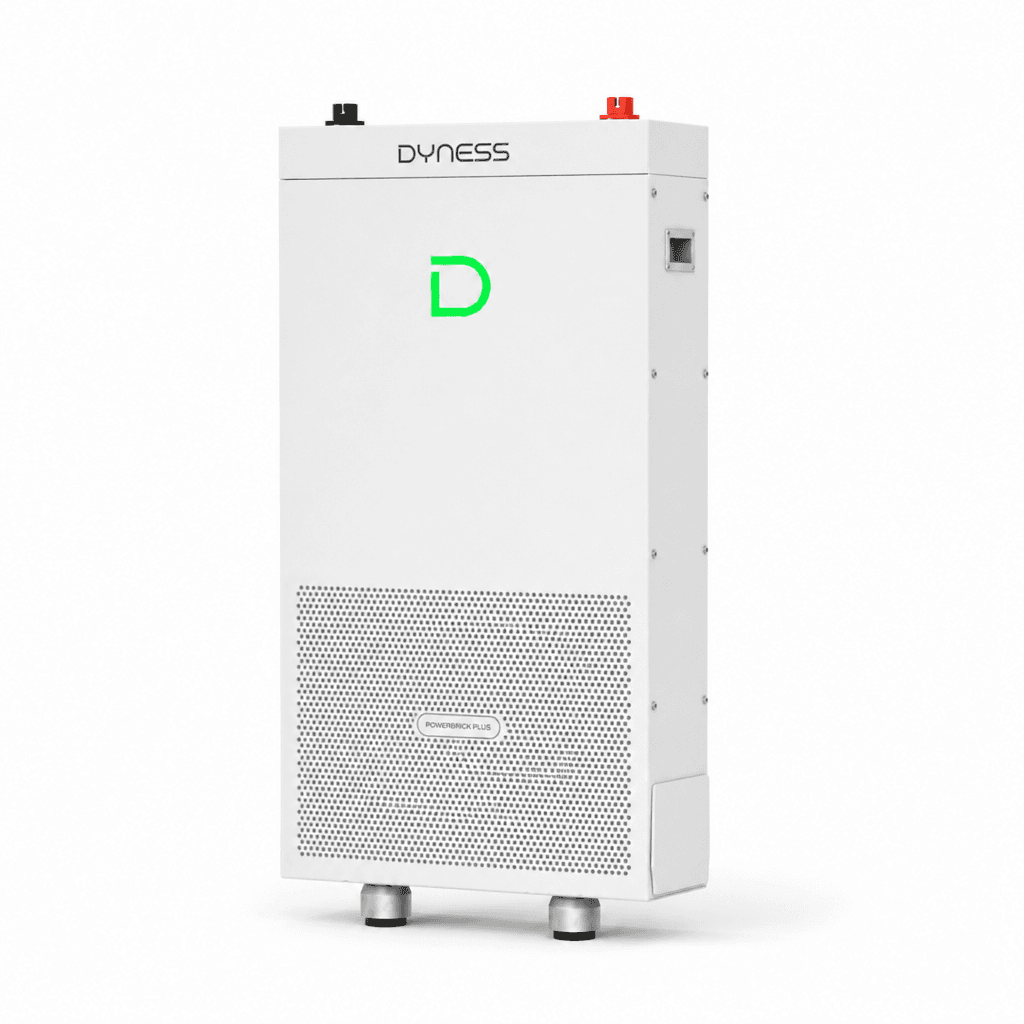

Dyness Powerbrick Plus
Product code 09-137Manufacturer code 09-105
- 16.08 kWhCapacity
- 10,24 kWPower
- 117 kgWeight
Overview
Dyness Powerbrick Plus is a battery system (16.08 kWh, LiFePO4), for residential installs.
Specifications
General
- Category
- Energy storage
- Product code
- 09-137
- Manufacturer code
- 09-105
- Model
- PowerBrick Plus
- Segment
- Residentieel
Power and efficiency
- Capacity
- 16.08 kWh
- Power
- 10,24 kW
- Chemistry
- LiFePO4
- Cycles
- >=8000
Electrical
- Nominal voltage
- 51,2 V
Mechanical
- Dimensions
- 435 x 235 x 850 mm
- Weight
- 117 kg
- IP rating
- IP65
Warranty
- Warranty
- 10 jaar (Dyness warranty letter)
Other
- Nominale energie
- 16,08 kWh
- Bruikbare energie
- 15,28 kWh
- Nominale capaciteit
- 314 Ah
How this product family works
Official Dyness video for the Dyness PowerBrick range. The footage covers this product family, not only this article.
Source: Dyness, official product family.
Questions
The short ones are here. For anything else, ask below.
Dyness Powerbrick Plus is a battery system (16.08 kWh, LiFePO4), for residential installs.
Dyness Powerbrick Plus is 16.08 kWh.
