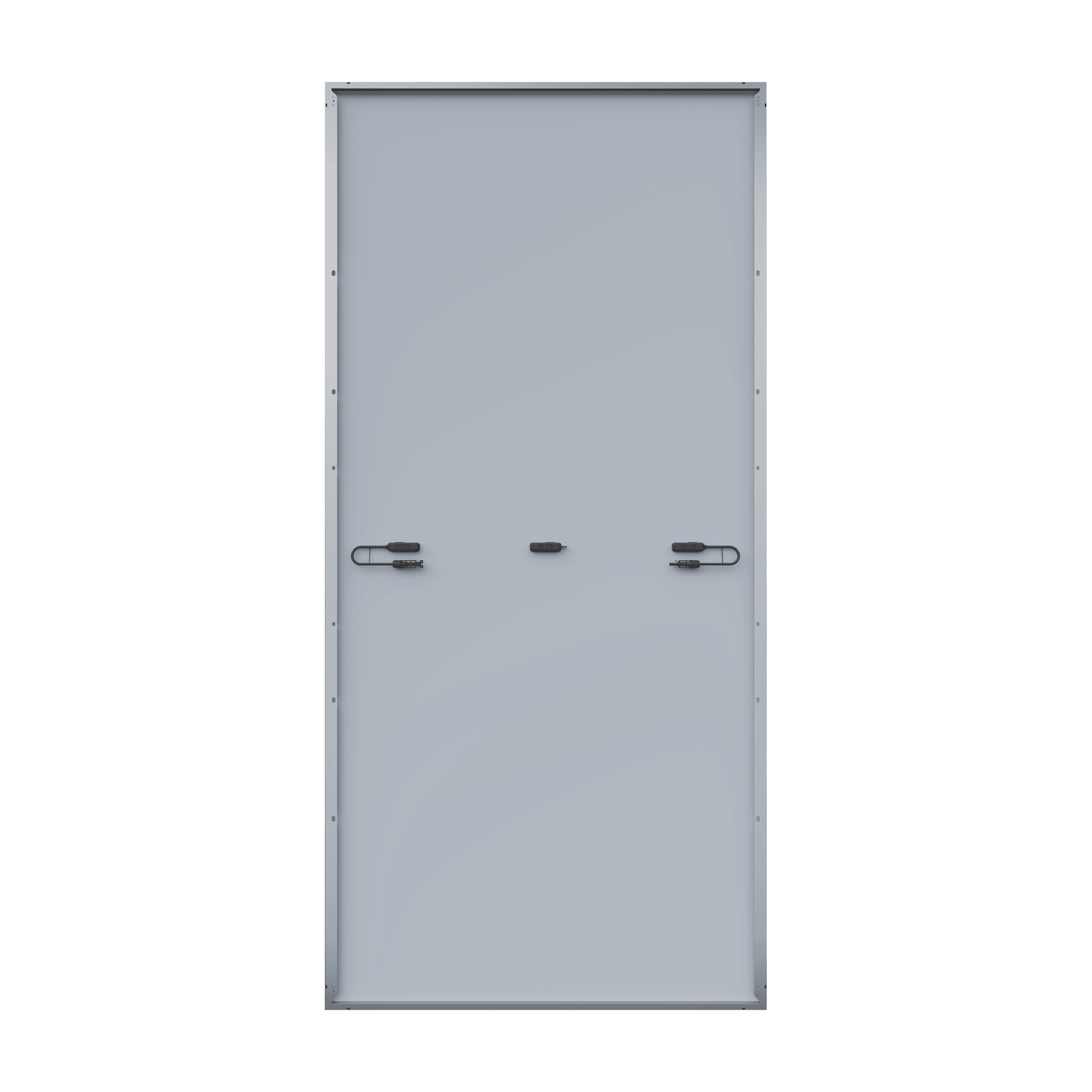

LR7-72HVH-640
- Wattage640 Wp
- Efficiency23.7 %
- Cell typeHPBC 2.0, 144 half-cells (6 x 24)
- GlassSingle glass
- Weight28.5 kg
- Warranty15 jaar product / 30 jaar vermogen
Overview
The LONGi LR7-72HVH-640 is a Hi-MO X10 Explorer solar module rated at 640 Wp with a module efficiency of 23.7 percent. It uses 144 back-contact cells (HPBC 2.0, 6 x 24) behind single 3.2 mm coated tempered glass in an anodised aluminium frame. Dimensions 2382 x 1134 x 30 mm, weight 28.5 kg.
Read the full description
Electrical data at STC: Voc 53.70 V, Isc 15.13 A, Vmp 44.36 V and Imp 14.43 A. The temperature coefficient of Pmax is -0.26 %/°C. Maximum system voltage 1500 V DC, maximum series fuse rating 25 A, IP68 junction box with three bypass diodes and 4 mm² cables.
Mechanically tested to 5400 Pa front load and 2400 Pa rear load, hail test with 25 mm hailstones at 23 m/s. LONGi provides a 15-year product warranty and a 30-year linear power warranty (at least 88.85 percent after 30 years). Supplied in pallets of 36 pieces.
Specifications
- 640 WpWattage
- 23.7 %Efficiency
- 28.5 kgWeight
- -0,26 %/°C (Pmax)Temperature coefficient
General
- Category
- Solar panels
- Product code
- 37-273
- Manufacturer code
- LR7-72HVH-640
- Series
- Hi-MO X10 Explorer
- Model
- LR7-72HVH-640
- Segment
- Commercieel
Power and efficiency
- Wattage
- 640 Wp
- Cell type
- HPBC 2.0, 144 half-cells (6 x 24)
- Efficiency
- 23.7 %
- Temperature coefficient
- -0,26 %/°C (Pmax)
Electrical
- Voc
- 53.70 V
- Isc
- 15.13 A
- Vmp
- 44.36 V
- Imp
- 14.43 A
- Max. system voltage
- 1500 V DC
Mechanical
- Dimensions
- 2382 x 1134 x 30 mm
- Weight
- 28.5 kg
- IP rating
- IP68
- Glass
- Single glass
Warranty
- Warranty
- 15 jaar product / 30 jaar vermogen
Questions
The short ones are here. For anything else, ask below.
The LONGi LR7-72HVH-640 is a Hi-MO X10 Explorer solar module rated at 640 Wp with a module efficiency of 23.7 percent. It uses 144 back-contact cells (HPBC 2.0, 6 x 24) behind single 3.2 mm coated tempered glass in an anodised aluminium frame. Dimensions 2382 x 1134 x 30 mm, weight 28.5 kg.
LR7-72HVH-640 is rated 640 Wp.
Module efficiency is 23.7%.
Build: Glass - Foil.
