HYX-S30K-T
- Power30 kW
- Phase3-fase
- MPPT channels3
- IP ratingIP66
- CommunicationRS485 / Wi-Fi / 4G / HPLC
Overview

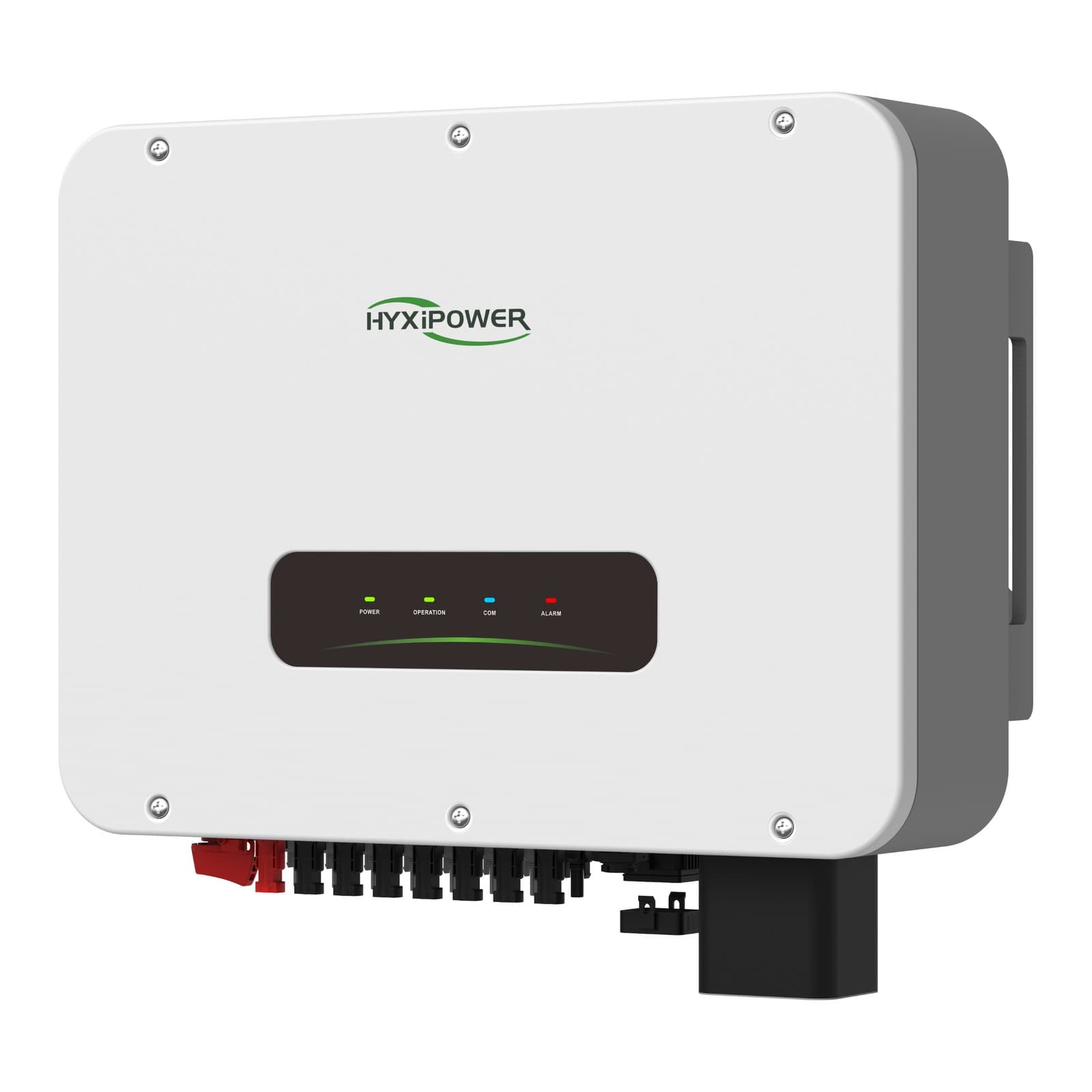

The Hyxi HYX-S30K-T is a three-phase string inverter (3L/N/PE, 230/400 V) without a battery port, rated 30 kW nominal and up to 33 kVA apparent power. 3 MPPTs with two string inputs each (6 strings) accept up to 40 A per MPPT and 20 A per string, suited to high-current modules. The PV array may be up to 48 kW, with a maximum of 1100 V DC and an MPPT range of 140 to 1000 V (full load 450 to 850 V).
Read the full description
Maximum efficiency 98.6 percent, European weighted 98.1 percent. Built in: type II DC and AC surge protection, DC switch, residual current monitoring, ground fault detection, anti-islanding and optional AFCI arc detection. PID recovery is optional. Communication via RS485, HPLC and a Hyxi data communication stick (DCS) on the communication port for Wi-Fi or 4G; a smart meter connects to the RS485 meter port. Setup and monitoring run through the Hyxi app.
Enclosure 615 × 460 × 268.5 mm (W × H × D), 44 kg, IP66, wall mounting, operating temperature -30 to +60 °C. TÜV NORD certified the series to EN 50549-1/-10 with the Dutch grid settings. Other ratings in this series: HYX-S29K9-T, HYX-S33K-T, HYX-S36K-T, HYX-S40K-T and HYX-S50K-T. Hyxi provides a 10-year product warranty under its European warranty terms.
Specifications
- 30 kWPower
- 1100 VMax. DC voltage
- 3MPPT channels
- 44 kgWeight
General
- Category
- Inverters
- Product code
- 15-163
- Manufacturer code
- HYX-S30K-T
- Series
- String S 29,9-50 kW
- Model
- HYX-S30K-T
- Inverter type
- String-omvormer
- Segment
- Residentieel
Power and efficiency
- Power
- 30 kW
Electrical
- Phase
- 3-fase
- MPPT channels
- 3
- Max. DC voltage
- 1100 V
- MPPT range
- 140-1000 V
- Communication
- RS485 / Wi-Fi / 4G / HPLC
Mechanical
- Dimensions
- 615 × 460 × 268,5 mm
- Weight
- 44 kg
- IP rating
- IP66
Warranty
- Warranty
- 10 jaar
Other
- Max. PV-ingang
- 48 kW
- Max. stroom per MPPT
- 40 A
- Max. stroom per string
- 20 A
Questions
The short ones are here. For anything else, ask below.
The Hyxi HYX-S30K-T is a three-phase string inverter (3L/N/PE, 230/400 V) without a battery port, rated 30 kW nominal and up to 33 kVA apparent power. 3 MPPTs with two string inputs each (6 strings) accept up to 40 A per MPPT and 20 A per string, suited to high-current modules. The PV array may be up to 48 kW, with a maximum of 1100 V DC and an MPPT range of 140 to 1000 V (full load 450 to 850 V).
HYX-S30K-T is rated 30 kW.
