Ballastveer
- TypeBallastveer
- Warranty20 jaar fabrieksgarantie
Overview

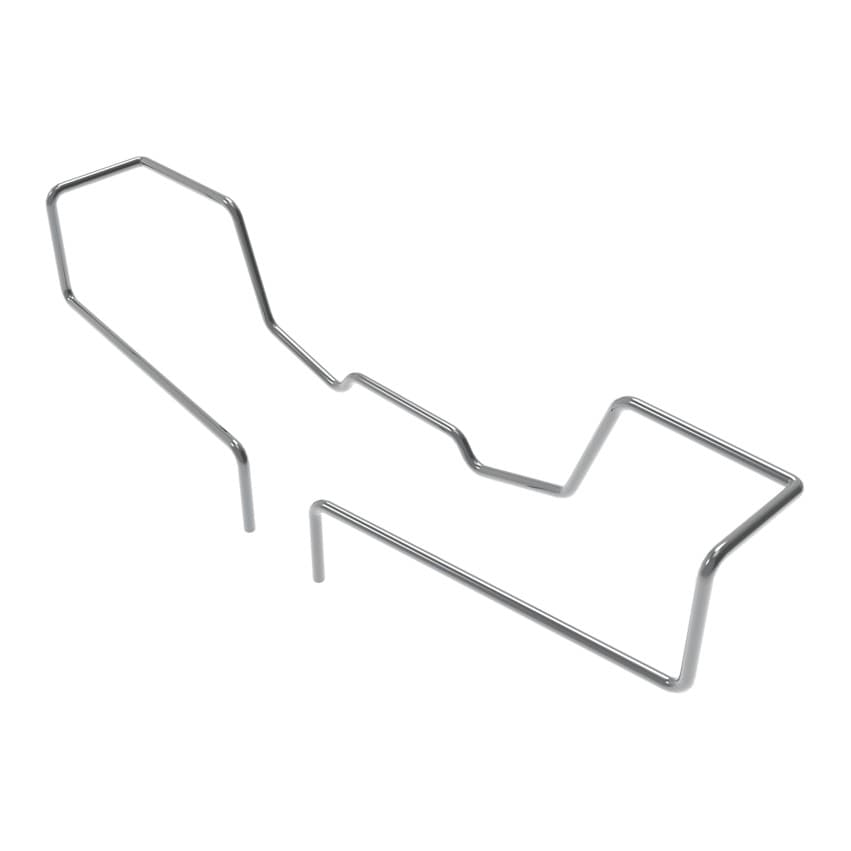

The Cobalt ballast bracket (art. 1320200) is the simplest ballast carrier in the Cobalt flat-roof system. The steel-wire bracket clicks onto a single mounting support and is not screwed down. During installation, release the pre-assembled mounting foot using the clips on its underside, turn it 90 degrees and refit it so the tile rests on bracket, support and foot. Suitable for 300 mm tiles (±15 mm), not for gravel, and usable up to a roof height of 12 metres. For higher roofs or gravel, Cobalt offers the ballast tray (up to 16 m) and the ballast container (up to 24 m, gravel allowed). Ballast position and weight follow from the CoBuilder ballast plan. Warranty: 20 years under the Cobalt warranty conditions.
Specifications
General
- Category
- Mounting material
- Product code
- 18-100
- Manufacturer code
- 1320200
- Type
- Ballastveer
- Segment
- Residentieel
Warranty
- Warranty
- 20 jaar fabrieksgarantie
Other
- Merk
- Cobalt Mounting Systems
- Ballast
- Tegel 300 mm
- Max. dakhoogte
- 12 m
From carton to a working system
Official Cobalt installation video for the Cobalt platdak range. The footage covers this product family, not only this article.
Source: Cobalt, official product family.
Questions
The short ones are here. For anything else, ask below.
The Cobalt ballast bracket (art. 1320200) is the simplest ballast carrier in the Cobalt flat-roof system. The steel-wire bracket clicks onto a single mounting support and is not screwed down. During installation, release the pre-assembled mounting foot using the clips on its underside, turn it 90 degrees and refit it so the tile rests on bracket, support and foot. Suitable for 300 mm tiles (±15 mm), not for gravel, and usable up to a roof height of 12 metres. For higher roofs or gravel, Cobalt offers the ballast tray (up to 16 m) and the ballast container (up to 24 m, gravel allowed). Ballast position and weight follow from the CoBuilder ballast plan. Warranty: 20 years under the Cobalt warranty conditions.
