Cobalt

Dakhaak groot 43-45 mm

Product code 18-103Manufacturer code 2100100

  • TypeFixed roof hook
  • Warranty20-year manufacturer warranty

Overview

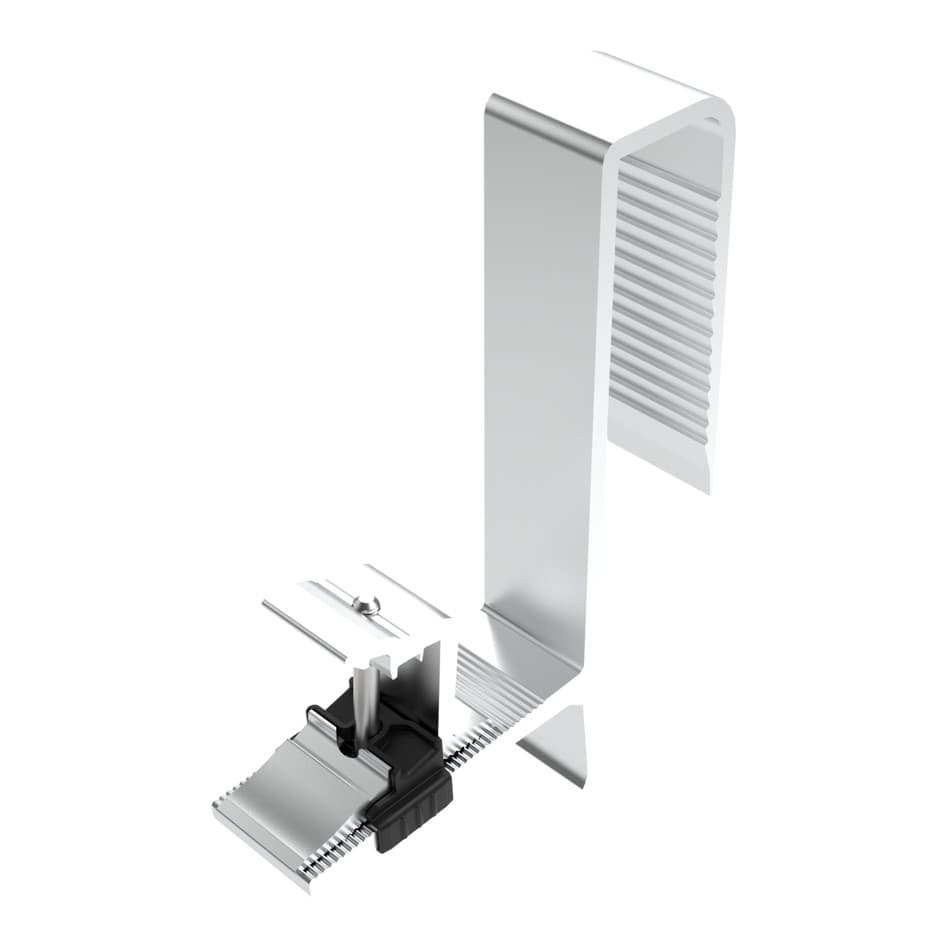

The Cobalt large roof hook (art. 2100100) is a fixed clamp hook for the Cobalt tiled-roof system. The hook is clamped behind the tile batten without screws: slide the roof tile up, hook the clamp behind the batten and slide the tile back. Cobalt specifies this fixed hook as 43 mm; according to the manual it suits a clamping dimension (X) of 41 to 47 mm and is intended for horizontal rails. The mounting rail clicks into the pre-assembled adapter with a twist-and-click movement, is height-adjustable and is secured with the bolt. Hook spacing is at most 1350 mm and follows from CoBuilder. If the dimension does not fit, choose the small fixed hook or the adjustable hook (30 to 58 mm). The tiled-roof system is intended for roof pitches of 10 to 70 degrees and modules with 30 to 45 mm frames. Warranty: 20 years under the Cobalt warranty conditions.

Specifications

General

Product code
18-103
Manufacturer code
2100100
Type
Fixed roof hook
Segment
Residential
Brand
Cobalt Mounting Systems

Mechanical

Height
43 mm
Fastening
clamp hook behind the tile batten, without screws
Clamping range (X)
41-47 mm
Rail orientation
horizontal

Warranty

Warranty
20-year manufacturer warranty

From carton to a working system

Official Cobalt installation video for the Cobalt pannendak range. The footage covers this product family, not only this article.

Source: Cobalt, official product family.

Questions

The short ones are here. For anything else, ask below.

The Cobalt large roof hook (art. 2100100) is a fixed clamp hook for the Cobalt tiled-roof system. The hook is clamped behind the tile batten without screws: slide the roof tile up, hook the clamp behind the batten and slide the tile back. Cobalt specifies this fixed hook as 43 mm; according to the manual it suits a clamping dimension (X) of 41 to 47 mm and is intended for horizontal rails. The mounting rail clicks into the pre-assembled adapter with a twist-and-click movement, is height-adjustable and is secured with the bolt. Hook spacing is at most 1350 mm and follows from CoBuilder. If the dimension does not fit, choose the small fixed hook or the adjustable hook (30 to 58 mm). The tiled-roof system is intended for roof pitches of 10 to 70 degrees and modules with 30 to 45 mm frames. Warranty: 20 years under the Cobalt warranty conditions.
