Dakhaak klein 33-35 mm

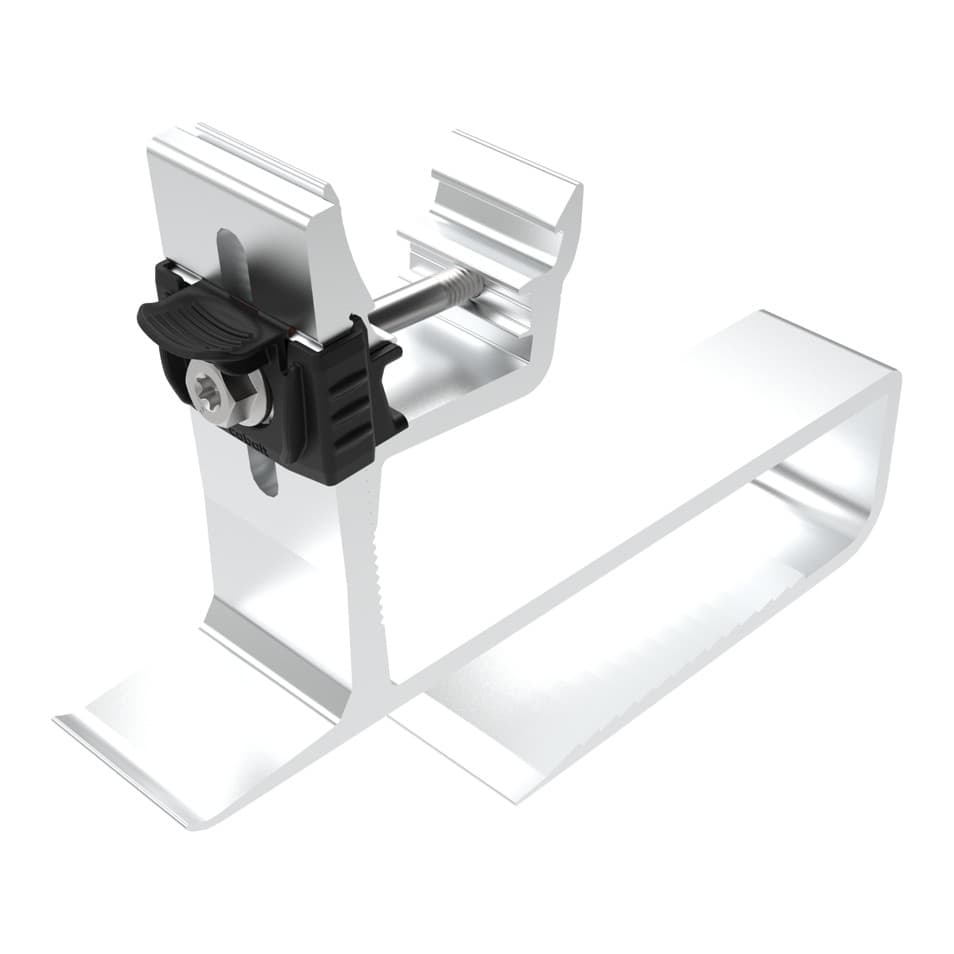

The Cobalt small roof hook (art. 2200100) is a fixed clamp hook for the Cobalt tiled-roof system. The hook is clamped behind the tile batten without screws: slide the roof tile up, hook the clamp behind the batten and slide the tile back. Cobalt specifies this fixed hook as 33 mm; according to the manual it suits a clamping dimension (X) of 31 to 37 mm and is intended for horizontal rails. The mounting rail clicks into the pre-assembled adapter with a twist-and-click movement, is height-adjustable and is secured with the bolt. Hook spacing is at most 1350 mm and follows from CoBuilder. If the dimension does not fit, choose the large fixed hook or the adjustable hook (30 to 58 mm). The tiled-roof system is intended for roof pitches of 10 to 70 degrees and modules with 30 to 45 mm frames. Warranty: 20 years under the Cobalt warranty conditions.
